Our Technology
Our MBR systems integrate advanced membrane technology with biological wastewater treatment, offering:
High-Quality Effluent: Consistent, superior water quality suitable for reuse.
- Compact Design: Space-saving configurations ideal for residential settings.
- Energy Efficiency: Optimized processes that reduce energy consumption.
Applications
Versatile Solutions for Residential NeedsIstanboli’s MBR systems are ideal for:
- Residential Communities: Reliable treatment with minimal environmental impact.
- Municipal Plants: Meeting stringent regulatory standards effortlessly.
Benefits Across Applications:
- Enhanced Water Reuse Potential
- Compliance with Strict Discharge Regulations
- Reduced Carbon Footprint

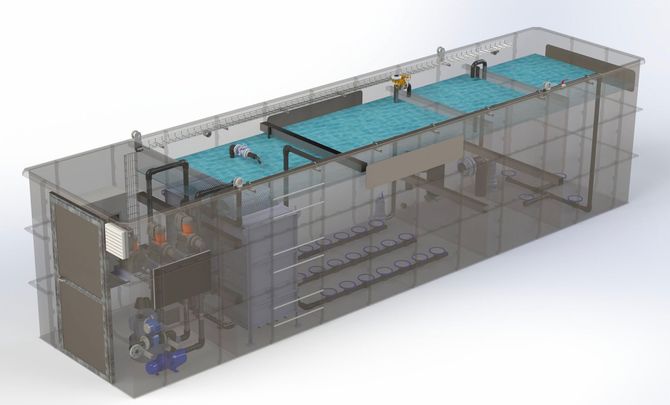

MBR Package Plant Specifications:
- Hydraulic Capacity:
- SMBR 50: 50 m³/day
- SMBR 100: 100 m³/day
- SMBR 150: 150 m³/day
- Dimensions (L x W x H):
- 11,000 mm x 2,150 mm x 2,200 mm
- Inlet Flange Diameter:
- Gravity-fed: DN 100
- Membrane Unit Surface Area:
- SMBR 50: 60 m²
- SMBR 100: 120 m²
- SMBR 150: 180 m²
- Weight:
- Empty: 4,500 kg
- Full: 30,000 kg
These specifications highlight the compact design, high efficiency, and suitability of Sigmadaf's MBR Package Plants for various applications, including areas with limited space and decentralized wastewater treatment needs.
Key Features:

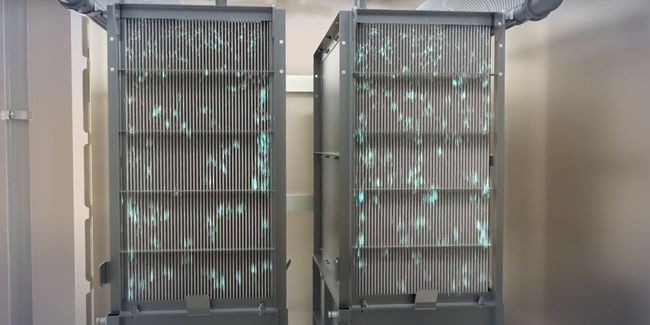

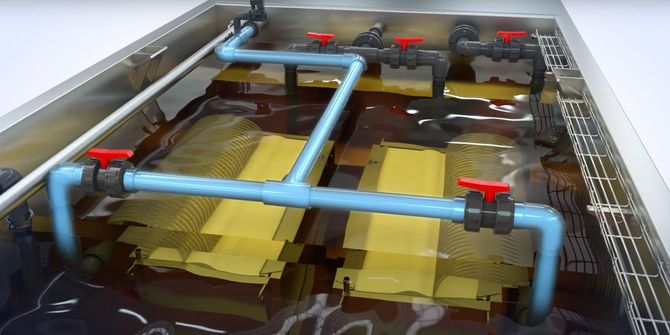

- Membrane Type:
- Ultrafiltration membranes, either hollow fiber or flat sheet, with pore sizes averaging 0.2 μm.
- Biomass Concentration:
- Capable of maintaining concentrations between 6,000 and 12,000 mg/L, higher than conventional clarifiers.
- Optional Configuration:
- Anoxic pre-chamber for simultaneous removal of Chemical Oxygen Demand (COD) and nitrogen through nitrification-denitrification, suitable for high nitrogen concentrations.
Purification Efficiency:
- Chemical Oxygen Demand (COD):
- Influent: <600 mg/L
- Effluent: <40 mg/L
- Removal Efficiency: 93%
- Biochemical Oxygen Demand (BOD):
- Influent: <300 mg/L
- Effluent: <10 mg/L
- Removal Efficiency: 97%
- Total Suspended Solids (TSS):
- Influent: <300 mg/L
- Effluent: <2 mg/L
- Removal Efficiency: 99%
- Total Kjeldahl Nitrogen (TKN):
- Influent: <40 mg/L
- Effluent: <10 mg/L
- Removal Efficiency: 75%
- Pathogen Removal:
- Escherichia coli: +90 533 714 5290%
- Nematodes: +90 533 714 5290%
- Legionella spp.: +90 533 714 5290%
- Viruses: 60-90%
- Oils and Fats:
- Influent: <50 mg/L
- Effluent: <1 mg/L
- Removal Efficiency: 98%
